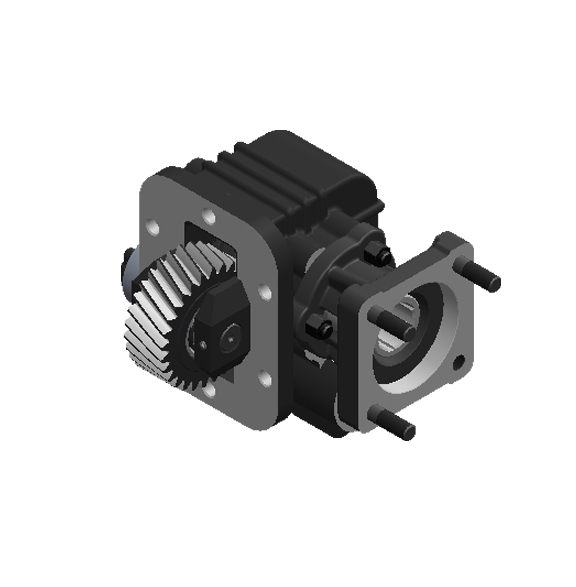

Isuzu Power Take-Off (PTO)

Kozmaksan Isuzu Power Take OFFs designed for Isuzu trucks. Kozmaksan Isuzu PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 41 KGM.

  • Kozmaksan Gearbox Code:  ISZ.06.MYY6S
  • Suitable Transmission Codes: MYY5T / MOY-9F / MOY-9H / MOYCR / MYY-6S / MOYMB / MOYNA / MYY-5S / MYY-6P / MYY-5A / MOYGX / MOY4N / MOYNB / MOYNC / MYY5R / MYY5D / MOYPN / MOYUK / MOYMC / MOYMR / MOYPZ ( 5,315-5,979 )
  • Used Trucks
    NLR85L (ED6AYG-HD6AYG) / NNR85L (FD5AYG-HD5AYG) / NPR75L (HL5VAYGN-KL5VAYGN-KL5VAYG) / NPR 66-71-75-77 ISUZU / NKR 250 / NPR 250 / NKR 66 E2L / HINO 300 SERI 4X2 / NQR 70 P / ELF NKR71 /  ELF 130 / NPR 66L / NQR71PL / NPR85L / 4.3 NPR 70 / NKR66E / NPR66P / NQR71R / NPR 66 LL / HINO DUTRO / NQR71PL / NPR 75 LONG / NLR / NLR LONG / NNR / NNR LONG / NPR 75 / N 10 / NPR 8 / NPR 8 LONG

Isuzu Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Mechanic
  • Weight: 14 kg / 31 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 2 Years Guarantee
  • 10 Years Spare Parts Back Up

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 23 KGM / 225 Nm / 166 LBS-FT
Max. Power 24 kW / 32 HP
Available Internal Ratios 1/1.03 - 1/1.36
Max. Speed 2000 RPM

ISZ.06.MYY6S Catalogue

ISO Output

ISO Output

UNI Output

UNI Output

Flange Output

Flange Output
