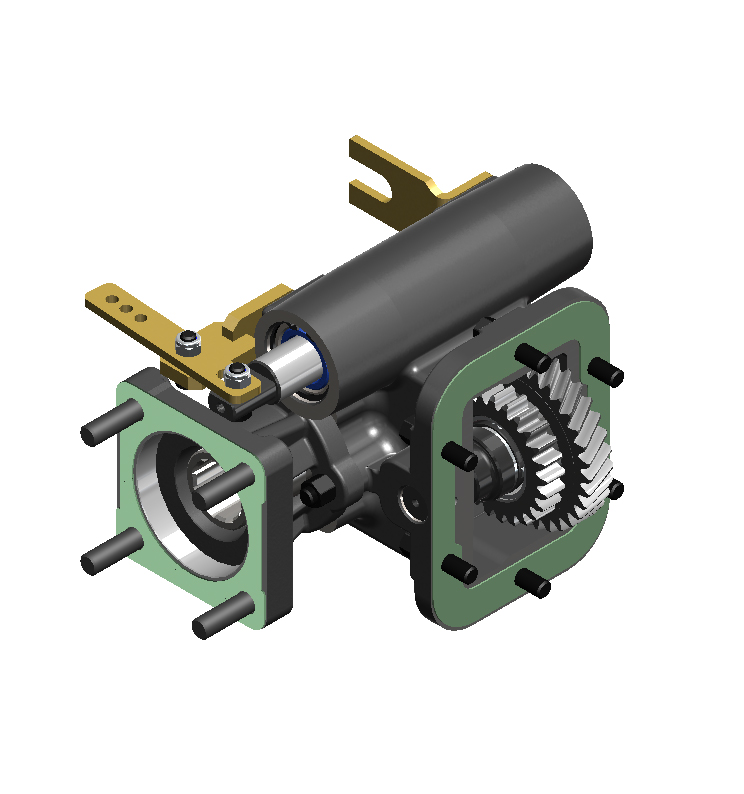

Iveco Power Take-Off (PTO)

Kozmaksan Iveco Power Take OFFs designed for Iveco series main transmissions. Kozmaksan IVC PTOs has Single&Double output models, Rear&Side Mounting type options and available for UNI&ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code: IVC.03.2840
  • Suitable Main Transmission: FPT 2840.6 FL2011 - MY2011 / 2840.6 (5,37) ( 8873022 - 8873021 - 8873387 EURO 5 ) FPT 2840.6 FL2011 - MY2011 / 2840.6 (5,37) ( 6872643)
  • Used Trucks
    IVECO DAILY 70C15 EURO 5

Iveco Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Mechanic&Vacuum
  • Weight: 13 kg / 28,5 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 2 Years Guarantee
  • 10 Years Spare Parts Warranty

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 23 KGM / 225 Nm / 166 LBS-FT
Max. Power 24 kW / 32 HP
Available Internal Ratios 1/1.24
Max. Speed 2000 RPM

Catalogue of IVC.03.2840

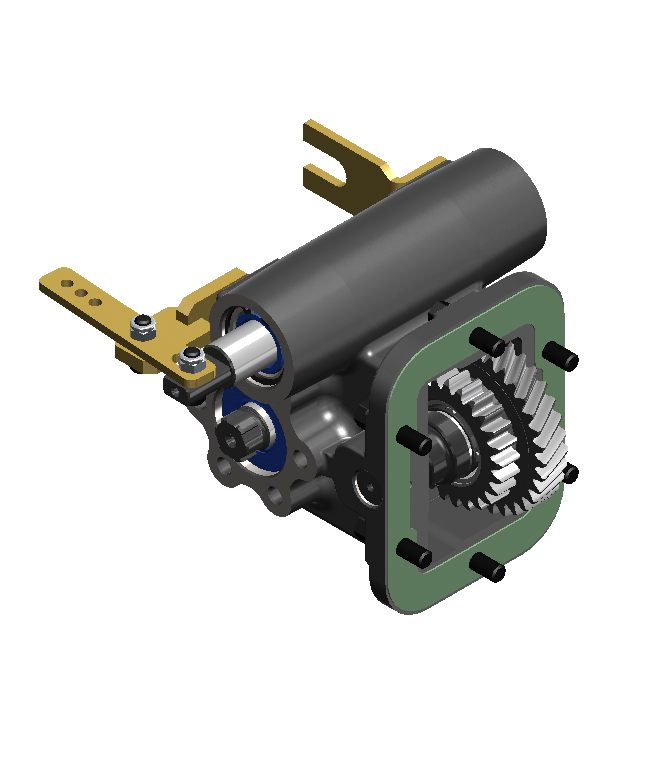

ISO Output

ISO Output

UNI Output

UNI Output

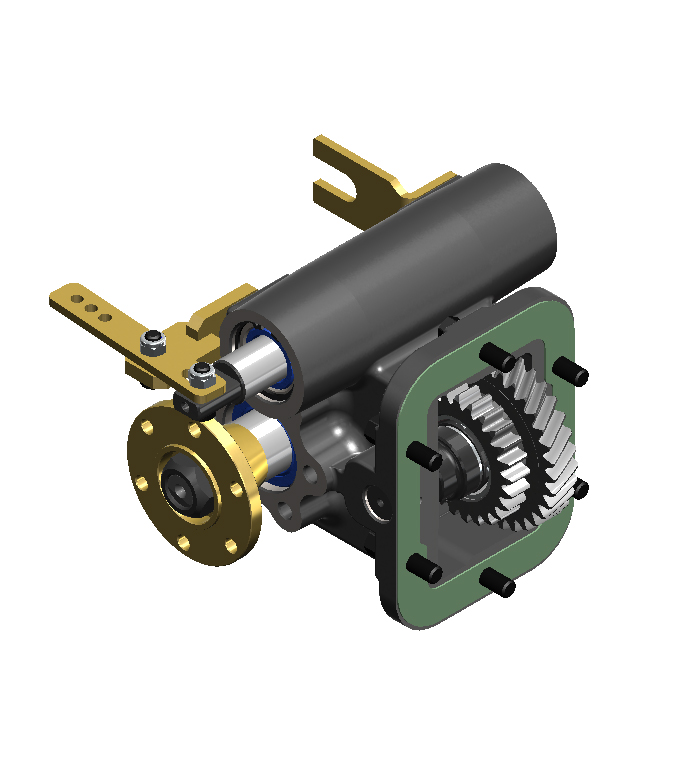

Flange Output

Flange Output
