Power Take-Off EAT.3.4106

Power Take-Off EAT.3.4106

Eaton-Fuller Power Take-Off (PTO)

Kozmaksan Eaton-Fuller Power Take OFFs designed for Eaton-Fuller series main transmissions. Kozmaksan EAT-FUL  PTOs has Single&Double output models, Rear&Side Mounting type options and available for UNI&ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code: EAT.3.4106
  • Suitable Main Transmission: EATON FS / FSO / H / V 4106(6,08-9,03-7,54) - 5206(6,08-9,03) A / B / H 3105 - 4105 - 5109(9,05-6,84) - 5209 - 5206 - 6309
  • Used Trucks: 180-617-620-622 BMC PRO / 200.26-180 FATİH BMC / 2520 FORD CARGO / AS 950 CHRYSLER / 180.12-210-220CD-320 MIDLUM RENAULT / FODEN 2000 / ERF E6.18 / 1415-1718 FORD / 8.163-8.224-18.224 MAN / FEDON ATKINSON E6.11 / STEYR 14S22 P37 4X2

Eaton-Fuller Power Take-Off (PTO)

  • Mounting Type: Rear
  • Control Type: Pneumatic
  • Weight: 11 kg / 24,5 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 2 Years Guarantee
  • 10 Years Spare Parts Warranty

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 32 KGM / 231 LBS-FT
Max. Power 33 kW / 44 HP
Available Internal Ratios 1/1.2
Max. Speed 2000 RPM

EAT.3.4106 Catalogue

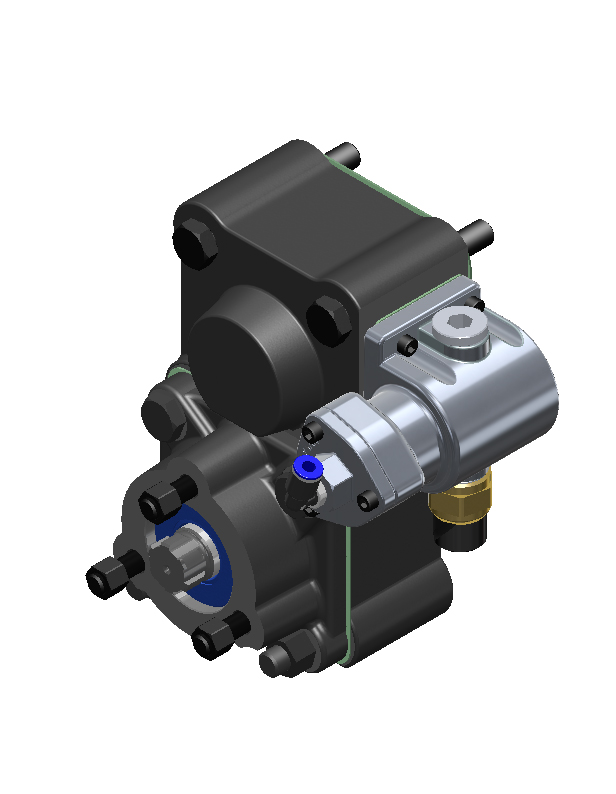

ISO Output

ISO Output

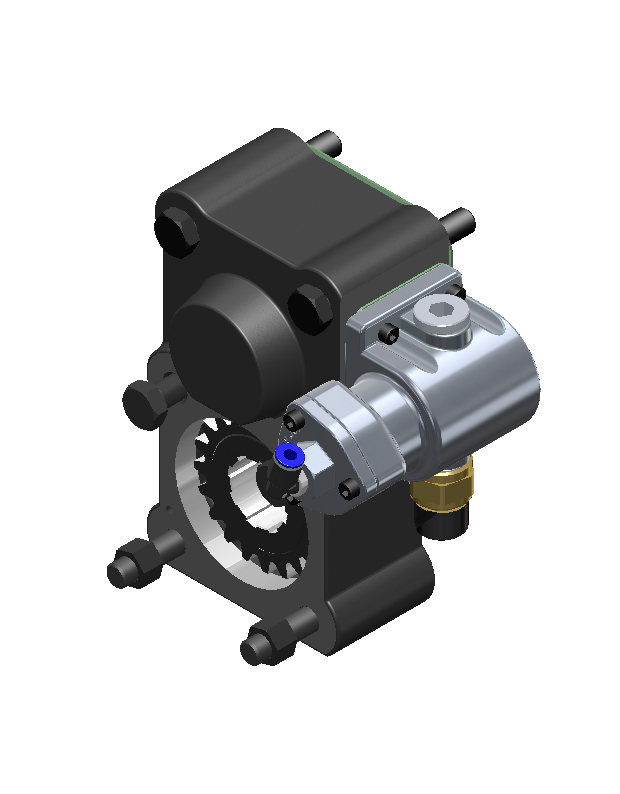

UNI Output

UNI Output

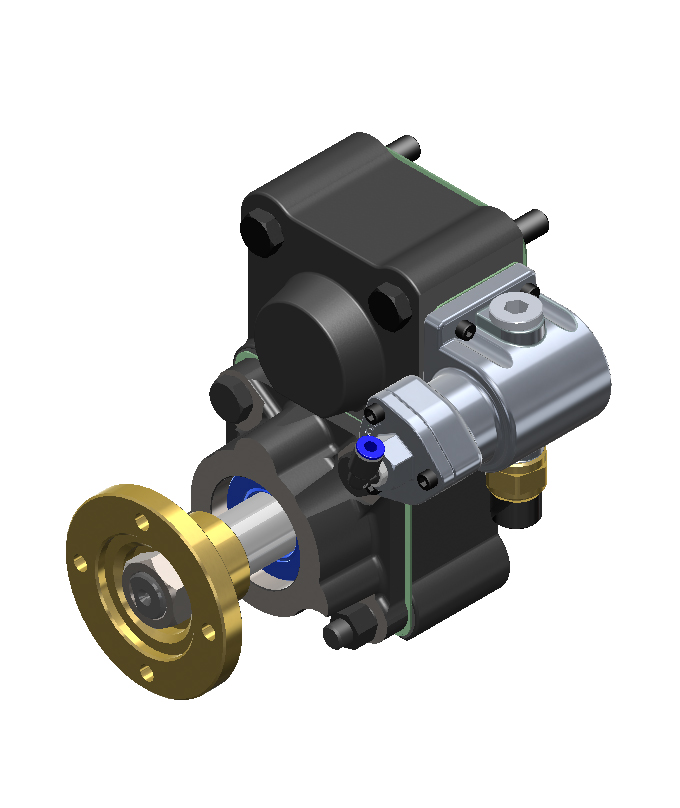

Flange Output

Flange Output
