Power Take-Off ISZ.06.MXA5R

Power Take-Off ISZ.06.MXA5R

Isuzu Power Take-Off (PTO)

Kozmaksan Isuzu Power Take OFFs designed for Isuzu trucks. Kozmaksan Isuzu PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 41 KGM.

  • Kozmaksan Gearbox Code: ISZ.06.MXA5R
  • Suitable Transmission Codes: MXA - 5R / MXA - 5S / MSA - 5D / MSA - 5S / MXA - 6R  / MXA - 5C / MXA - 5D / MSA - 5G (4,987-5,670-5,788-4,766)
  • Used Trucks
    NKR WIDE LX 100 HP-4.3 NPR CHAMPION ISUZU / 3.2 NPR ISUZU / NPR 66 / NHR 70 / NKR 66  / NKR 66E / NPR 66P / NPR 300-400-400S / FRR 500 / ISUZU ELF 250

Isuzu Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Pneumatic
  • Weight: 13 kg / 28,5 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 2 Years Guarantee
  • 10 Years Spare Parts Back Up

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 23 KGM / 225 Nm / 166 LBS-FT
Max. Power 24 kW / 32 HP
Available Internal Ratios 1/1.03
Max. Speed 2000 RPM

ISZ.06.MXA5R Catalogue

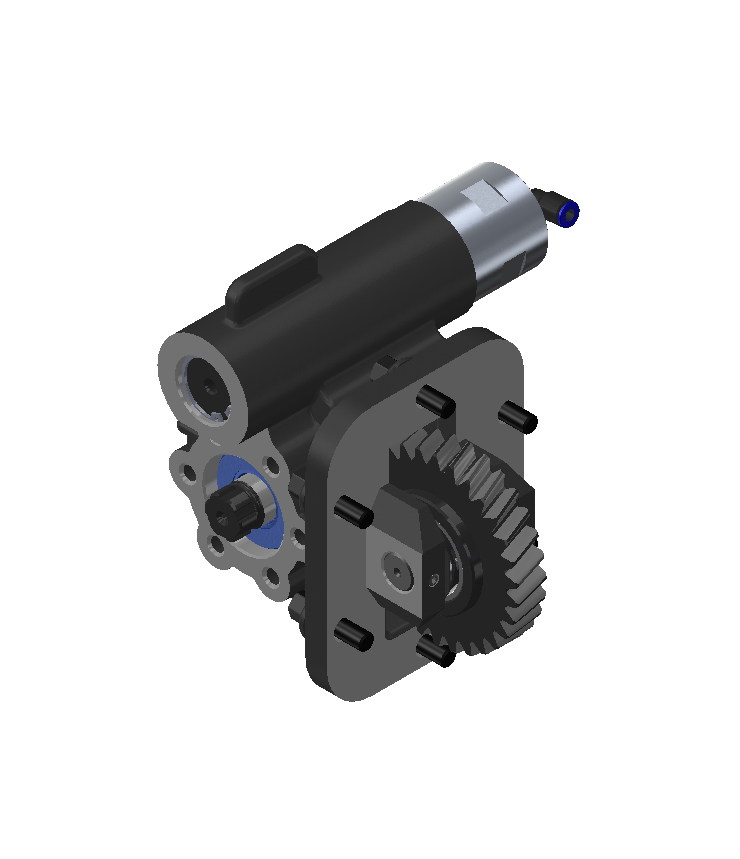

ISO Output

ISO Output

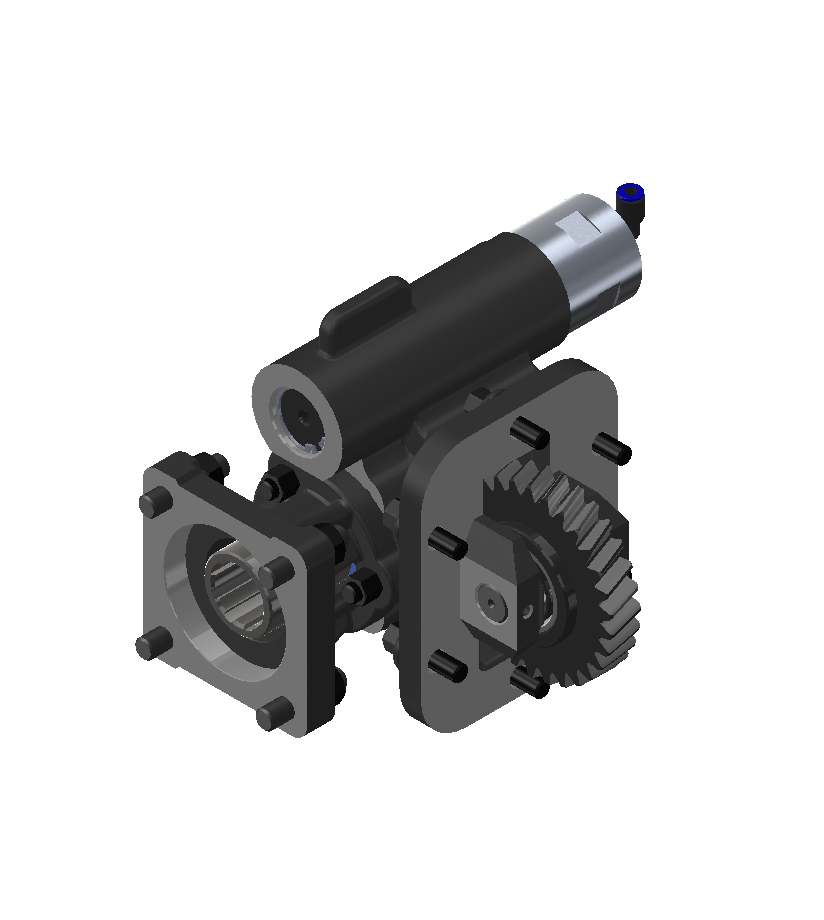

UNI Output

UNI Output

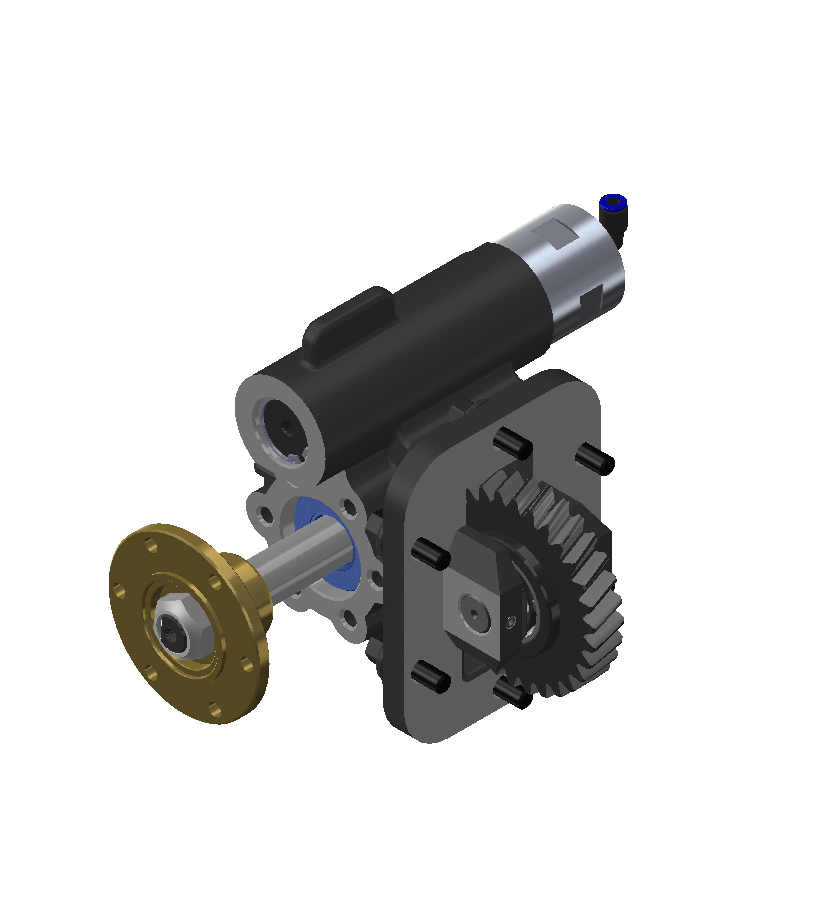

Flange Output

Flange Output
