Power Take-Off IVC.05.2835

Power Take-Off IVC.05.2835

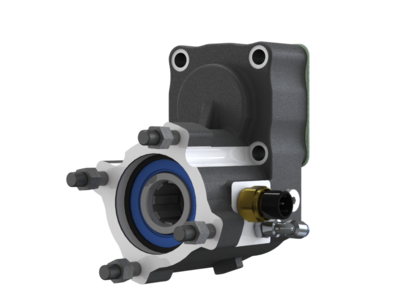

Iveco Power Take-Off (PTO)

Kozmaksan Iveco Power Take OFFs designed for Iveco series main transmissions. Kozmaksan IVC PTOs has Single&Double output models, Rear&Side Mounting type options and available for UNI&ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code: IVC.05.2835
  • Suitable Main Transmission: FPT 2835.6 ( 5,004 ) / 2840.6 PART NO:8874020
  • Used Trucks
    IVECO DAILY 35C13

Iveco Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Pneumatic
  • Weight: 13 kg / 28,5 lb
  • Sense of Rotation: Opposite of Engine Shaft
  • 2 Years Guarantee
  • 10 Years Spare Parts Warranty

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 19 KGM / 186 Nm / 137 LBS-FT
Max. Power 20 kW / 26 HP
Available Internal Ratios 1/1.42
Max. Speed 2000 RPM

IVC.05.2835.6 Catalogue
