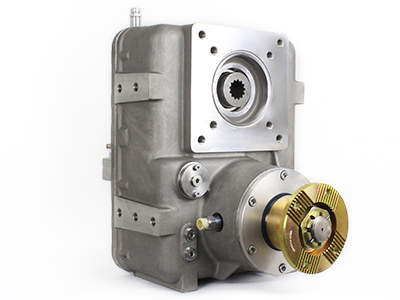

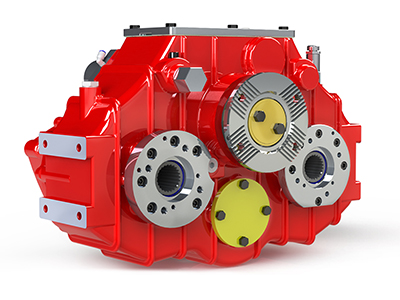

Split Shaft PTO - UARA.2402

Split Shaft PTO - UARA.2402

3000 KGM Horizontal SSU with specially designed durable for repeater loads. UARA.2402 can provide 100% of input speed at normal drive mode.PTO outputs can be design with all ISO standard flanges as well as suitable housing for any kind of hydraulic pump. Cooling system can be mount on the gearbox. Even though it is generally used for Concrete Pumping Vehicles, it can be used any application which needs high torque capacity.

Equivalent To: OMSI PFT-PCV/3000 WITH CLUTCH.

EQUIVALENT TO OMSI | OPTIMA DRIVE | PARKER CHELSEA | GUNERI MAKINA | MUNCIE | GHM TRANSMISSIONS |

FOR KENWORTH TRUCKS | MACK TRUCKS | USA TRUCKS | PETERBILT | WESTERN STAR TRUCKS

  • 6 PTO Outputs
  • Control Type: Pneumatic
  • Mounting Type: Split Shaft
  • Sense of Rotation: Opposite as Input
  • Weight: 195 kg / 430 lb
  • 1+1 Year Warranty (+1 Year Extended If Control Panel Bought with Unit)
  • 10 Years Spare Part Back Up

Options

  • RPM Counter
  • Engage/Disengage Sensor
  • Cooling System

Applications

  • Concrete Pumping Vehicles
  • Combined Cleaning Trucks
Max Torque (Normal Drive) 3000 kgm / 29419 Nm / 21700 lb-ft
Available Internal Ratios 1/1.25
Required Oil 12 lt / 12.7 qt / 406 oz
Max Service Pump Output Power 1270 NM

UARA.2402
