Split Shaft Pto - UARA.2400

Split Shaft Pto - UARA.2400

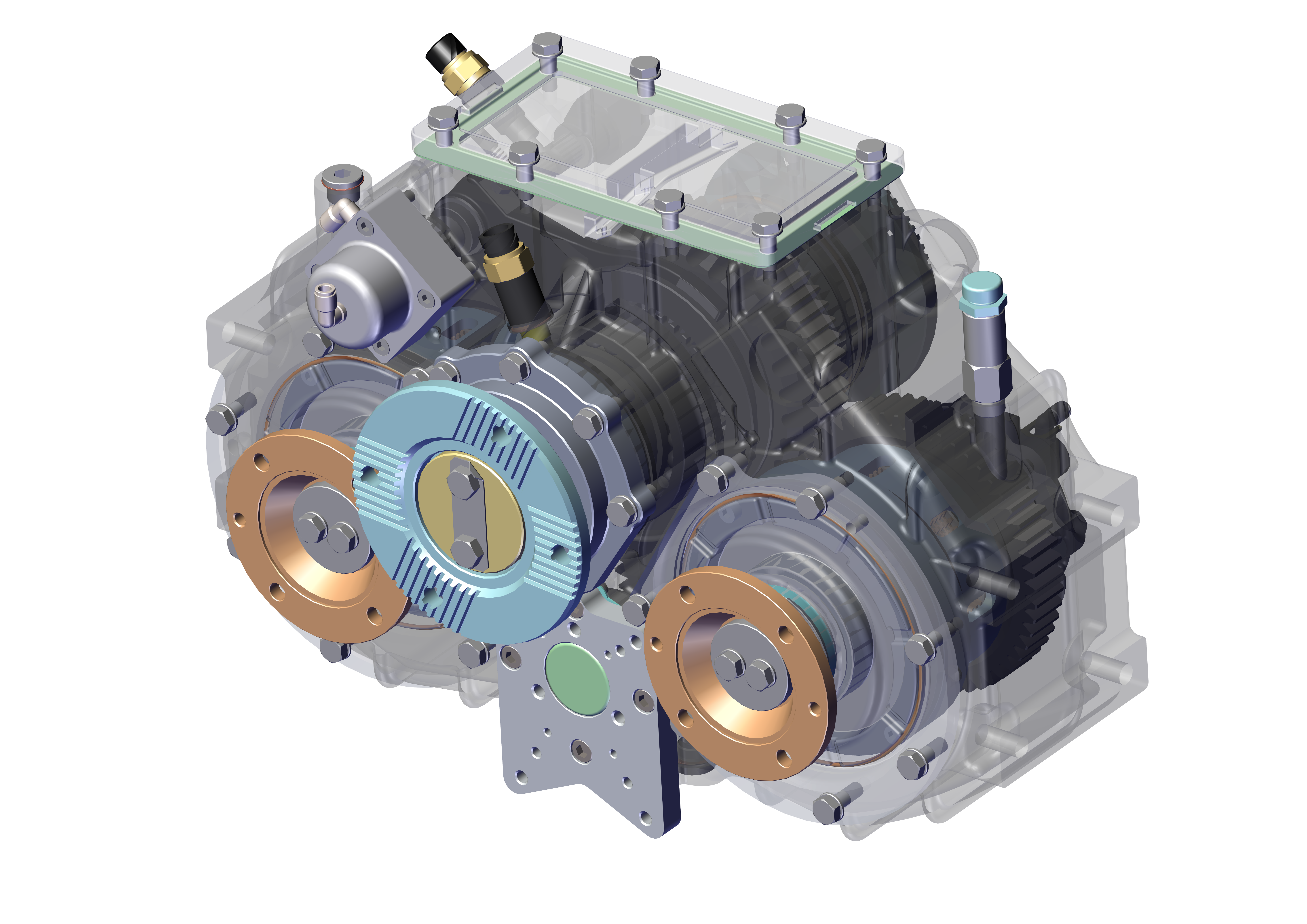

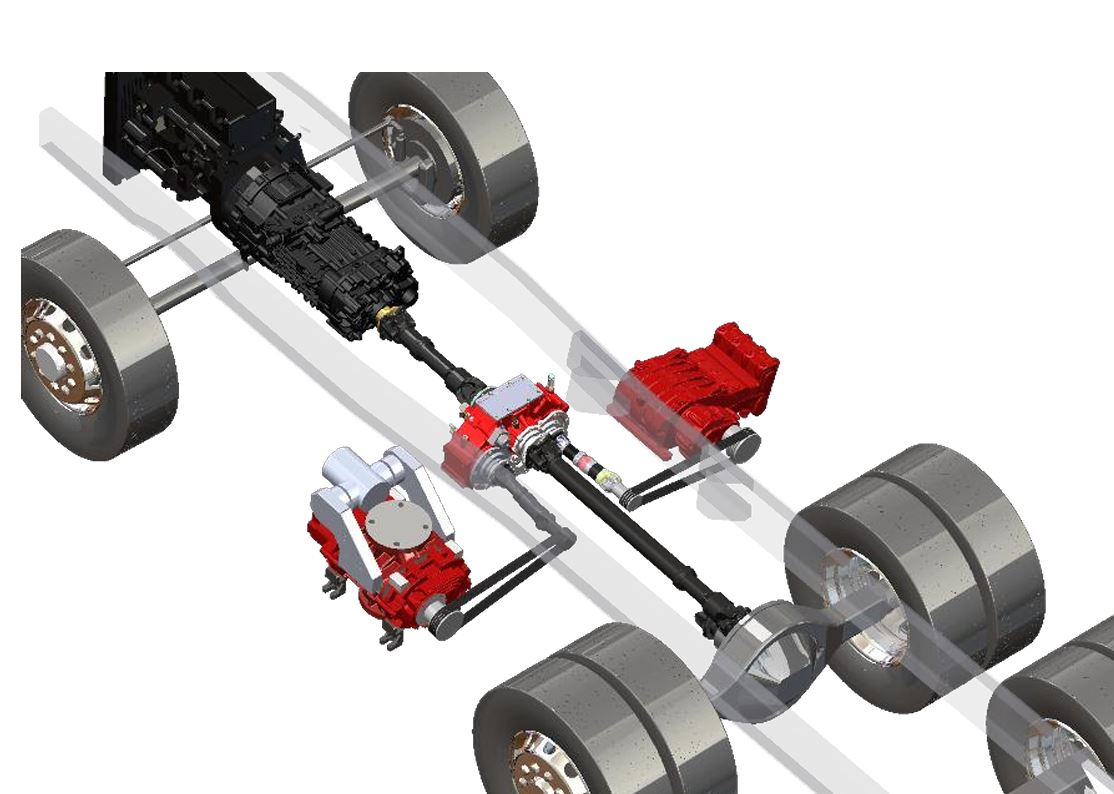

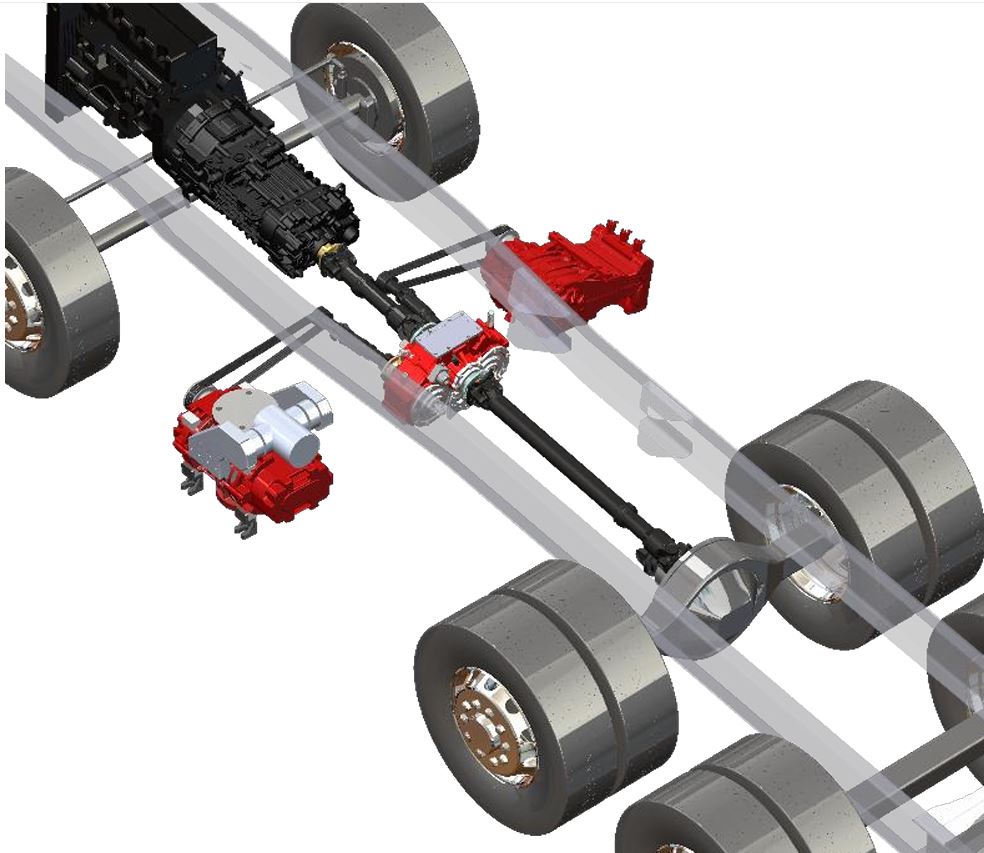

3000 KGM horizontal Heavy Duty Gearbox which is designed with the Clutch Mechanism and it provides Hot Shift Feature. Thanks to the clutch mechanism not necessary to press clutch pedal during engage/disengage process. It can provide 100% of input speed. The gearbox has 2 side outputs and 2 service pump outputs. Each output can be controlled independently. It depends on the requirements the gearbox can be designed even just with single output. PTO output can be at differential side or cabin side. PTO outputs can be design with all ISO standard flanges as well as suitable housing for any kind of hydraulic pump. Cooling system can be mount on the gearbox. Engage/Disengage sensor can be installed to observe, if PTO is engaged or not, also RPM counter is another option. Even though it is generally used for Sewer Cleaning Trucks, it can be used any application which needs Hot Shift Feature.
  • Hot Shift Featured Horizontal SSU
  • 2 Side PTO Outputs
  • 2 Service Pump Pads
  • Control Type: Pneumatic
  • Mounting Type: Split Shaft
  • Sense of Rotation: Opposite of Input
  • Weight: 170 KG / 375 LBS
  • 2 Years Guarantee
  • 10 Years Spare Part Back Up

Options

  • RPM Counter
  • Engage/Disengage Sensor
  • Cooling System

Applications

  • Sewer Cleaning Combination Vehicle
  • Water Jetting Truck
  • Vacuum Truck
Max Torque 3000 KGM / 21700 LBS-FT
Max PTO Output Power 110 kW / 147 HP
Available Internal Ratios 1/1 - 1/1.25 - 1/1.7
Required Oil 12 lt / 12.7 qt / 406 oz
