Hot Shift PTO ALS.18.3060

Hot Shift PTO ALS.18.3060

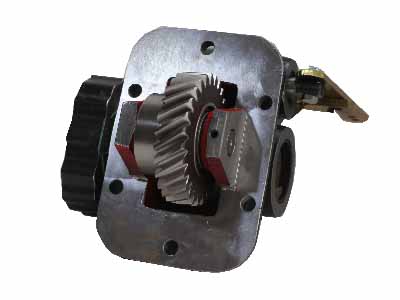

Allison Power Take-Off (PTO)

Kozmaksan Allison Power Take OFFs designed for Allison series main transmissions. Kozmaksan ALS PTOs has Single output model, Side Mounting type options and available for UNI&ISO mounting housing or suitable for flange connections. Kozmaksan has been designing ALS series PTOs as Clutch Shift PTO. In other words, ALS Series PTOs have Clutch System.

  • Kozmaksan Gearbox Code: ALS.18.3060
  • Suitable Transmission Codes:  ALLISON MD 3000-3060-3066-3070-3200-3560-3566 / HD 4060-4070-4076-4430-4560
  • Used Trucks
    ISUZU / KENWORTH / PETERBILT / FORD / MITSUBISHI / DETROIT DIESEL / ZETROS MERCEDES / 180E28 IVECO / 65CF-240 DAF / DENNIS Elite / DENNIS Elite Kerbsider / DENNIS Sabre XL / PRO 628 BMC / MITSUBIHI FUSO FIGHTER / SEDDON / ML160E24 IVECO / ATEGO / SCANIA P340 / HINO 268A / 2628LL Econic MERCEDES BENZ / UD 2600 / HINO USA NV8J / TERBERG VOLVO

Allison Power Take-Off (PTO)

  • Mounting Type: Side PTO
  • Control Type: Oil Pressure
  • Weight: 29 kg / 64 lb
  • Sense of Rotation: Opposite of Engine Shaft

Options

  • SAE B & UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 40 KGM / 392 Nm / 289 LBS-FT
Max. Power 41 kW / 54 HP
Available Internal Ratios 1/0.72
Max. Speed 2000 RPM

Catalogue of ALS.18.3060

ALS.18.3060 User Manual
