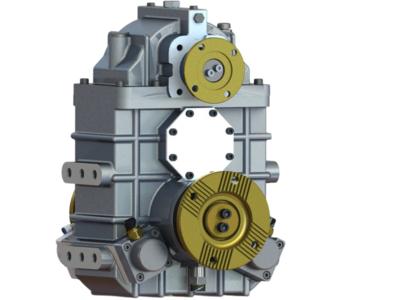

3-STAGE SPLIT SHAFT PTO

2100 KGM vertical  Split Shaft PTO is designed for Heavy Duty trucks with 3-stage. Pump&Roll featured gearbox can be installed as horizontal also. It can provide 100% of input speed. Control system can be pneumatic or mechanic. PTO  shaft can be at differential side or cabin side. Second PTO output is an option.  In case of double PTO, the output is requested, PTO outputs can be shifted independently.PTO outputs can be design with all ISO standard Flanges as well as suitable housing for any kind of hydraulic pump. The cooling system can be mount on the gearbox. Engage/Disengage sensor can be installed to observe, if PTO is engaged or not, also RPM counter is another option.

  • 3-stage Vertical Split Shaft PTO
  • Pump&Roll Feature
  • Control Type: Pneumatic&Mechanic
  • Mounting Type: Split Shaft
  • Sense of Rotation: Same as Input
  • Weight: 135 kg / 297 lb
  • 1+1 Year Warranty (+1 Year Extended If Control Panel Bought with Unit)
  • 10 Years Spare Part Back Up

Options

  • RPM Counter
  • Engage/Disengage Sensor
  • Cooling System
  • Second PTO Output

Applications

  • Fire Fighting Truck
  • Water Truck
Max Torque 2100 kgm / 20593 Nm / 15190 lb-ft
Max PTO Output Power 185 kW / 248 HP
Available Internal Ratios 1/1 , 1/1.4 , 1/1.6 , 1/1.84 , 1/2.25
Required Oil 5 lt / 5.3 qt / 169 oz
