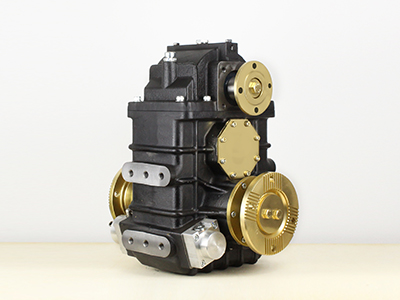

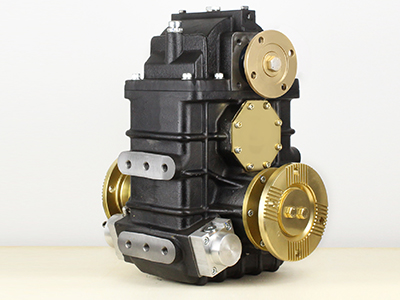

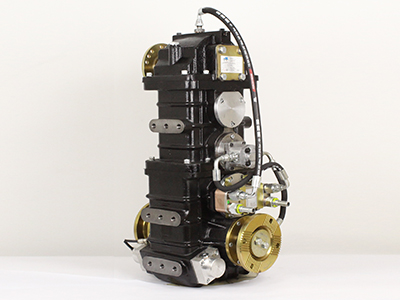

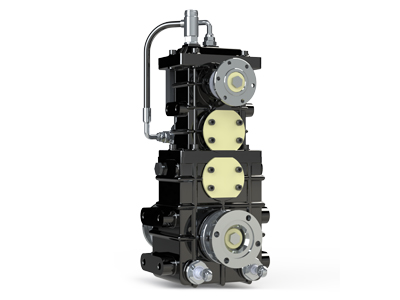

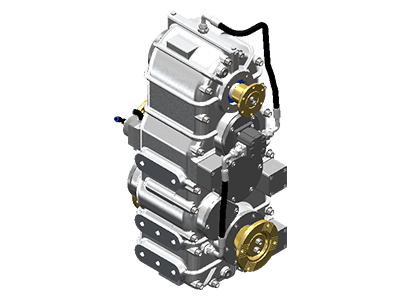

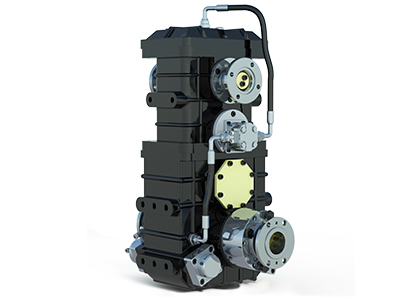

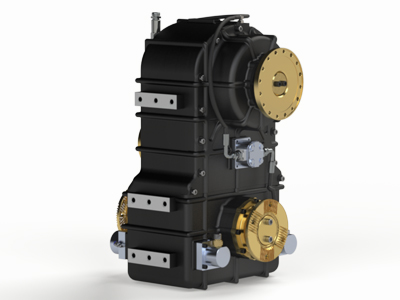

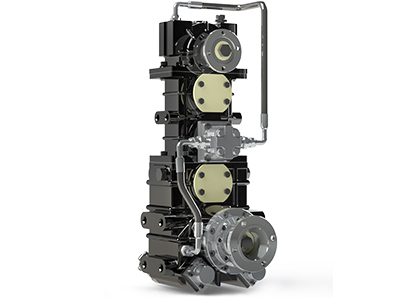

Split Shaft PTO - UARA.404

Split Shaft PTO - UARA.404


430 KGM vertical Split Shaft PTO is designed for light duty trucks with 4-Stage to be used over-chassis application. Pump&Roll featured gearbox can be installed as horizontal also. It can provide 100% of input speed. Control system can be pneumatic or mechanic. PTO output can be at differential side or cabin side. Second PTO output is an option.  In case of double PTO, the output is requested, Pto outputs can be shifted independently. PTO outputs can be design with all ISO standard flanges as well as suitable housing for any kind of hydraulic pump. Cooling system can be mount on the gearbox. Engage/Disengage sensor can be installed to observe if PTO is engaged or not, also RPM counter is another option. In case of drum brake is located on the behind of the main transmission, UARA.404 can be designed with drum brake if requested.

  • 4-Stage Vertical Split Shaft PTO
  • Pump&Roll Feature
  • Built on Lubrication System
  • Control Type: Pneumatic&Mechanic
  • Mounting Type: Split Shaft
  • Sense of Rotation: Opposite of Input
  • Weight: 75 kg / 165 lb
  • 1+1 Year Warranty (+1 Year Extended If Control Panel Bought with Unit)
  • 10 Years Spare Part Back Up


  • RPM Counter
  • Engage/Disengage Sensor
  • Drum Brake
  • Double PTO Output
  • Cooling System


  • Fire Fighting Truck
  • Fire Jeep
  • Water Truck
Max Torque 430 kgm / 4216 Nm / 3110 lb-ft
Max PTO Output Power 85 kW / 113 HP
Available Internal Ratios 1/1.5
Required Oil 2,5 lt / 2,6 qt / 80 oz

Catalogue of UARA.404
