Power Take-Off ISZ.07.MOZ79
Isuzu Power Take-Off (PTO)
Kozmaksan Isuzu Power Take OFFs designed for Isuzu trucks. Kozmaksan Isuzu PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 41 KGM.
Isuzu Power Take-Off (PTO)
- Mounting Type: Left Side PTO
- Control Type: Pneumatic&Mechanic&Vacuum
- Weight: 14 kg / 31 lb
- Sense of Rotation: Opposite of Engine Shaft
- 1 Year Warranty
- 10 Years Spare Parts Back Up
Options
- UNI & ISO & Flange Mountings
- Engage/Disengage Sensor
- Control Cabel and Lever with Mechanic PTOs
Applications
- Garbage Truck
- Crane Truck
- Dump Truck
| Max. Torque | 23 KGM / 225 Nm / 166 LBS-FT |
| Max. Power | 24 kW / 32 HP |
| Available Internal Ratios | 1/1.09 - 1/1.27 |
| Max. Speed | 2000 RPM |
ISZ.07.MOZ79H Catalogue

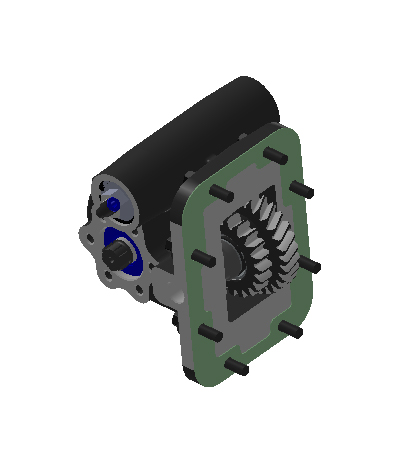

ISO Output

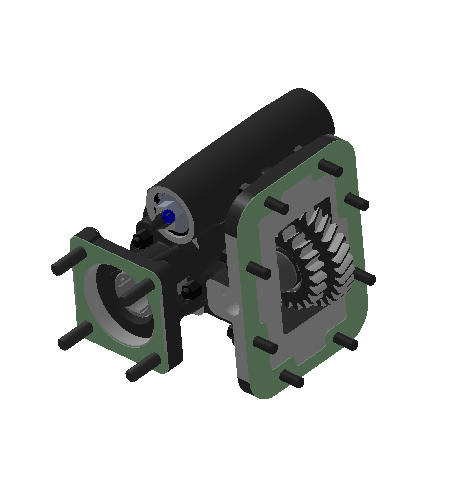

UNI Output

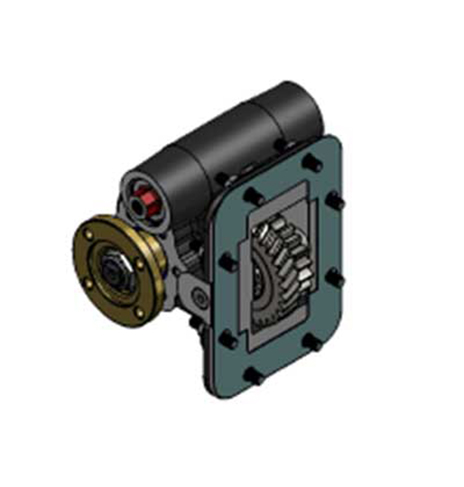

Flange Output
