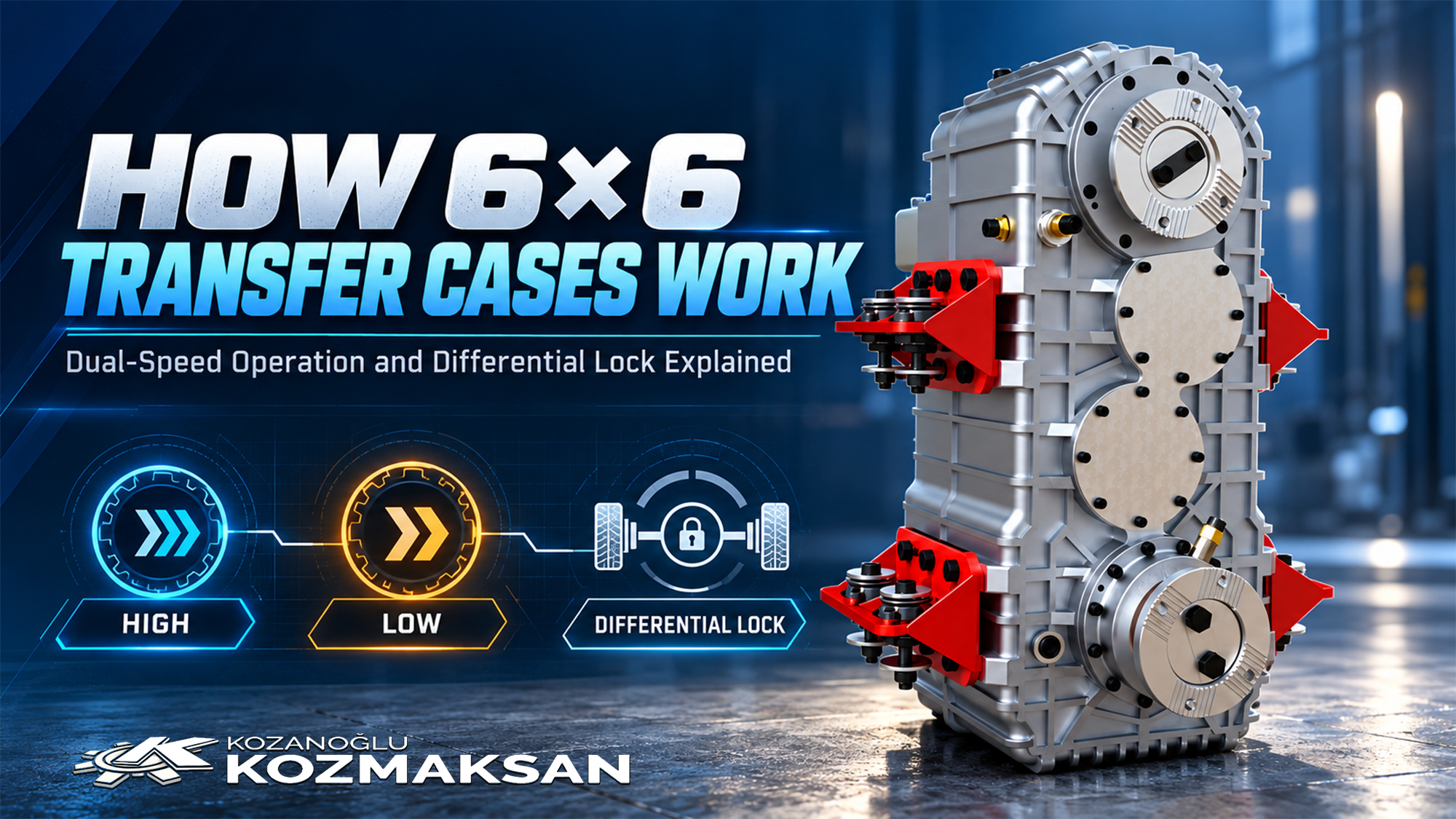

How 6x6 Transfer Cases Work: Dual-Speed Operation and Differential Lock Explained

A 6x6 transfer case is one of the most mechanically sophisticated components on a heavy-duty truck — yet it's rarely explained in plain terms. Whether the vehicle is a firefighting apparatus, an 8x8 ARFF truck, a sewer cleaning truck, or a military vehicle, the core mechanics are the same. Here's how the key functions actually work, based on Kozmaksan's engineering documentation.

Dual-Speed Operation: High and Low Range

A dual-speed transfer case gives the vehicle two internal gear ratios — a high range for road speed and a low range for maximum torque at low speed, such as off-road recovery or approach to a work site. Shifting between ranges is controlled pneumatically: supplying air pressure at one control point engages high range, while supplying it at a second point engages low range. When air pressure is cut entirely, the transfer case moves to neutral. This pneumatic control also enables a neutral towing mode — if the vehicle needs to be towed, the driveline can be disengaged without any mechanical disassembly.

Differential Lock: What Makes It "6x6"

The "6x6" designation refers to all three axles being driven. On a transfer case with an integrated differential axis, supplying air pressure to the differential lock engages that axle, putting the vehicle into full 6x6 drive; releasing pressure disengages it. This allows the vehicle to run in a more efficient drive mode on paved roads and switch to full 6x6 traction when the terrain demands it — useful whether the vehicle is navigating an airfield, a disaster site, rough terrain, or a standard road route between calls.

Live PTO: Running Equipment While the Vehicle Moves

Many transfer cases used on heavy-duty trucks include a continuously rotating output shaft dedicated to running mounted equipment — a "live" PTO connection. Because this shaft rotates whenever the vehicle's driveline is turning, it can power pumps, blowers, or other equipment while the vehicle is in motion. This is essential across multiple vehicle types: pump-and-roll operation on firefighting trucks, continuous suction on sewer cleaning trucks, and sustained equipment operation on military support vehicles.

Why Shift Timing Matters

Engaging or disengaging range shifts and the differential lock should only be done once the main shaft has come to a complete stop — shifting while driving is a common cause of transfer case damage and is typically excluded from manufacturer warranty coverage. This is a critical operational detail that's easy to overlook under field conditions but essential for service life, regardless of the vehicle application.

How the Industry Categorizes These Systems

Transfer case manufacturers commonly categorize their designs by shaft count. Marmon-Herrington, a long-established US manufacturer of axles and transfer cases, offers both 3-shaft and 4-shaft transfer case designs for trucks — the same shaft-count categorization used across the heavy-duty transfer case industry. In the ARFF segment specifically, Oshkosh's P-19R ARFF vehicle uses an Oshkosh 35000 Series transfer case, a single-speed design. Kozmaksan's transfer case takes a different approach across all four of its target vehicle categories: a 4-shaft, dual-speed design with an engageable differential lock, giving fleets both high/low gear selection and true 6x6 capability from a single unit.

Built for Extreme-Duty Applications

This transfer case is engineered specifically for vehicles that need to perform reliably in the harshest conditions across four demanding categories: firefighting vehicles, 8x8 ARFF trucks, sewer cleaning trucks, and military vehicles. Its gears are surface-hardened to 58-61 HRC for wear resistance, its body is cast from GJS-400-15 spheroidal graphite iron for corrosion and fatigue resistance, and its seals are rated for -40°C to +140°C operation — specifications chosen for equipment that cannot afford to fail in the field, whatever the mission.

Explore the full specifications of Kozmaksan's 6x6 Transfer Case for Heavy Duty Trucks, or see the complete 4x4 and 6x6 Transfer Case range.
