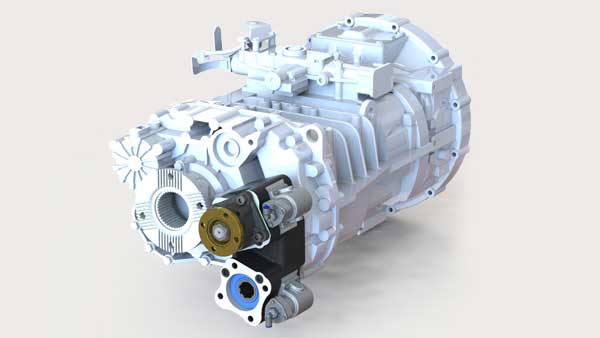

Transmission Power Take Off

Truck transmissions have one or more locations which allow for a PTO to be mounted.

The PTO must be purchased separately and care is required to match the physical interface of the transmission with a compatible PTO. PTO is used in cases where superstructures needs to be run. PTO is mounted on the main transmission of truck. Mounting can be rear, left or right side or even bottom of tranmission. PTO Units are used in Dump Trucks and Ram Vehicles, Hook Loaders and on Platform Vehicles, fuel tankers. Some heavy duty PTO units used in Fire Fightning Trucks, Cleaning Combination Trucks and Concrete Pumping Trucks. PTO units can have single or double output. It depends on Hydraulic Pump housing, Outputs can be ISO or UNI mounting type. The Power Take Off is engaged/disengaged using the main transmission clutch and a remote control mechanism which operates on the PTO itself. Typically an air valve is used to engage the PTO, but a mechanical linkage, electric or hydraulic mechanism are also options.

General rules for PTO installation

For correct installation of PTOs and all related accessories, it is very important to follow these general rules;

  • Always check the PTO instruction manual and any further specific instruction sheets included in the PTO package. Always operate taking into account the gearbox operating manual
  • Use the appropriate tools and instruments such as torque wrenchs, gauges and thickness gauges
  • Use only gaskets supplied by the Manufacturer. Use paste gasket only if recommended.
  • Mastic is forbidden if used together with paper gaskets.
  • It is advisable to use medium thread locking fluid for locking bolts and studs
  • Perform all Installation operations with the vehicle standing on a level surface,otherwise oil levels cannot be checked.
  • Operate with engine and gearbox at ambient temperature.
  • Check that the PTO is equipped with the correct mounting kit.
  • Check that clutch works properly, otherwise adjust it. The transmission should stop rotating within 5 to 6 seconds.
  • Check that the gearbox has no unusual noises or vibrations

Use of the PTO

IMPORTANT: when engaging and disengaging the PTO, always press the clutch pedal!
Working temperature and load conditions;
The temperature depends on the way the PTO is used and it is recommended to keep it between the following values Short duration (less than 15 minutes) max.120 °C, long duration (more than 15 minutes) max 100 °C.

The PTO temperature is affected by various factors; it is possible to reduce overheating by:

  • Changing the oil more often in case of heavy duty system
  • When the PTO is side mounted, ensuring that the gear backlash is accurately checked
  • When the PTO is rear mounted, considering to provide the PTO with a supplementary lubrication kit.
